Racehorse

[Nighttrucker]

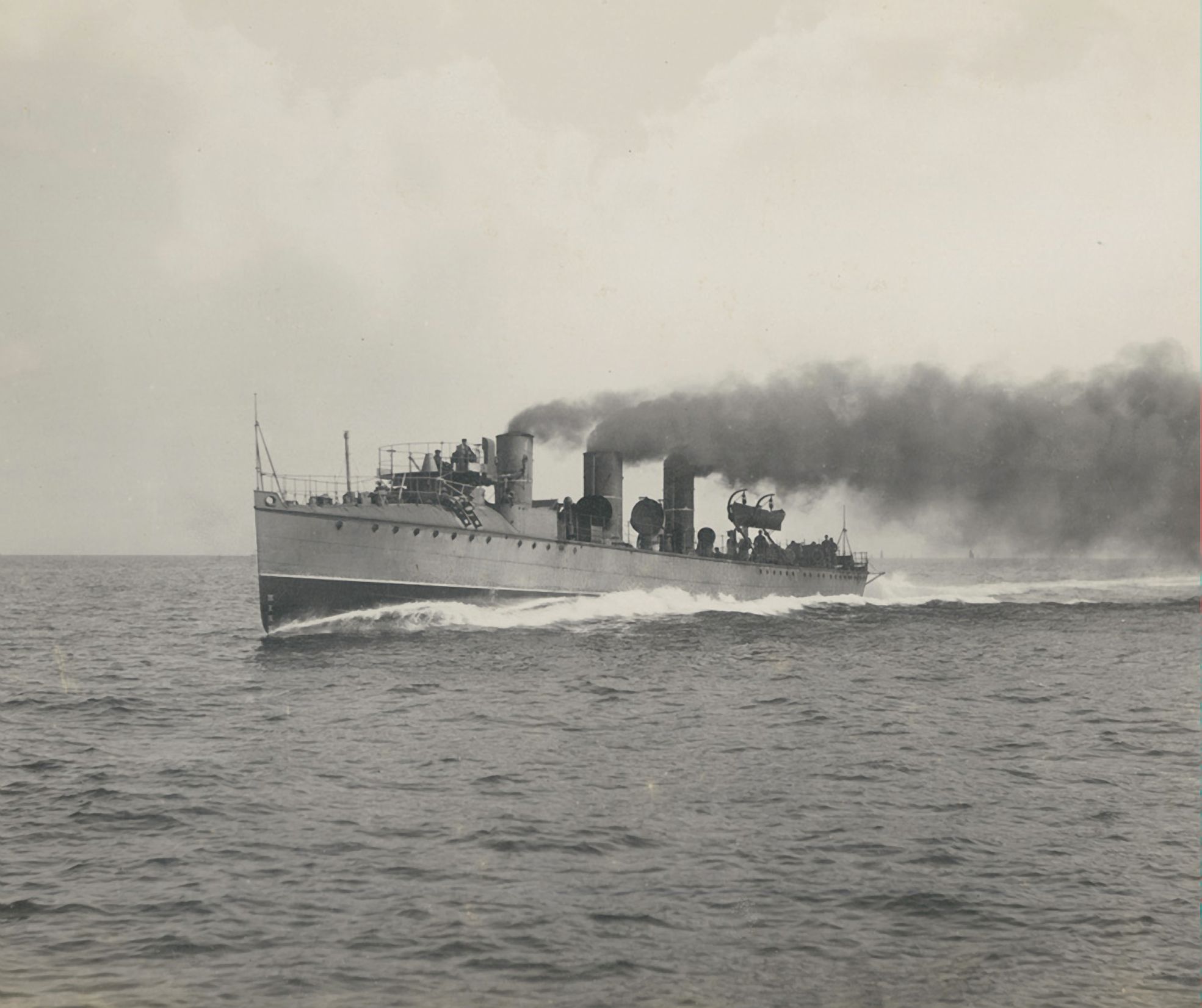

RACEHORSE Running Builders Sea Trials 1901
Built by Hawthorn Leslies YN378

RACEHORSE

Regards
Dave

[magoonigal]

See...

http://www.tynebuiltships.co.uk/R-Ships ... e1901.html

[tynebuoy]

[magoonigal]

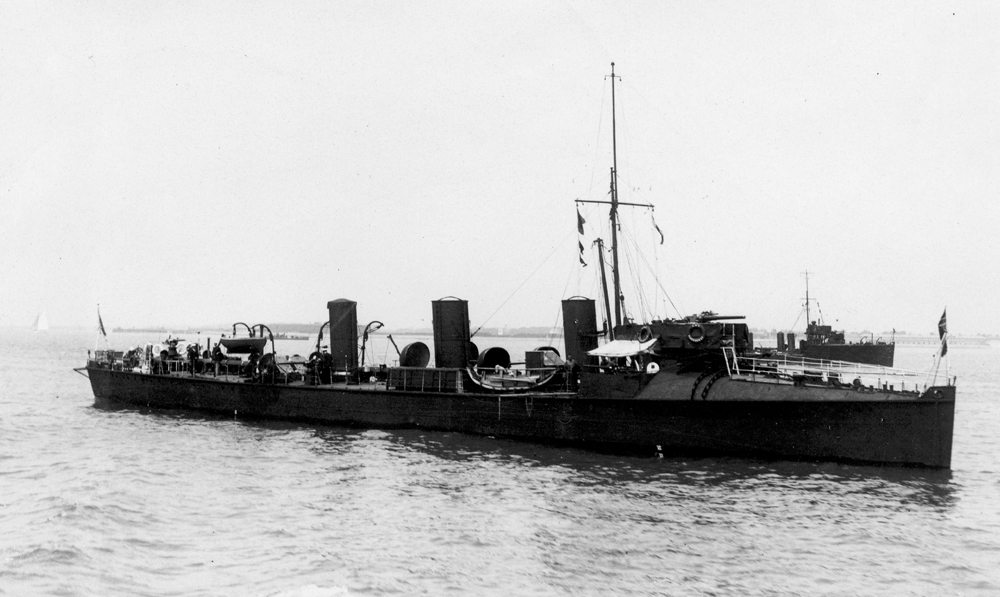

Comparing the two pictures it would appear that she ran her Trials without armament.

On her 3 hour Trial she managed 30.346 Knots at 399.9 RPM with 6,105 IHP.
She had Yarrow Boilers. Coal 80 to 95 Tons. Range 1350/1500 N.M. at 11 knots.

Based on the design of VIOLET and SYLVIA by Wm Doxford & Sons Ltd. "C" Class.
Displacement 385 Tons.
Cast steel common shell 88 plus 12 rounds of Forged Steel Shrapnel.
The Captain's Sleeping Cabin was aft just forward of the Screws so I doubt if he got that much sleep!

[Terrysummerson]

YARD No. 378
NAME HMS RACEHORSE
LBP 210 ft. 3 in.
BREADTH MLD. 21 ft. 0 in.
DEPTH MLD. 12 ft. 6 in
CLASS Torpedo boat destroyer
DEADWEIGHT 50.5 tons
LOAD DISPLACEMENT 347 tons
LOAD DRAUGHT 5 ft.7.25 in.(trial)
BLOCK COEFFICIENT 0.49
FREEBOARD
BOILER DISCRIPTION 4 Yarrow
BOILER DIMENSIONS
BOILER PRESSURE 250lbs
ENGINES twin triple expansion
CYLINDERS 19", 29", 46", x18"
I.H.P. 6105 (trials)
REVOLUTIONS 399.9
SPEED; CD 30.346 knots; 216
TRIAL DISPLACEMENT
CONSUMPTION
H.S. 13200
G.S. 252
WINCHES
HOLD CAPACITY
PERMINANT BUNKERS 86.75 tons
WATER BALLAST
PASSENGERS 1st. Class
PASSENGERS 2nd Class
OFFICERS
P.O.s & CREW
GROSS TONNAGE 352.49
NET TONNAGE 59.75
DATE 1899-1900
